Manual: Connecting ProjectX API to AlgoWay

This guide shows the full process: enable ProjectX API access, create an API key inside your ProjectX-connected trading platform, add a ProjectX webhook in AlgoWay, and then create the correct TradingView alert with the required JSON and Webhook URL.

Contents

• 1) Enable ProjectX API Access
• 2) Create API Key in Your ProjectX Platform
• 3) Add ProjectX Webhook in AlgoWay
• 4) Optional: Send a Test Webhook from AlgoWay
• 5) Copy Your Webhook URL in AlgoWay
• 6) Use Correct JSON for the TradingView Alert
• 7) Create TradingView Alert – Message Tab
• 8) Create TradingView Alert – Webhook URL

---

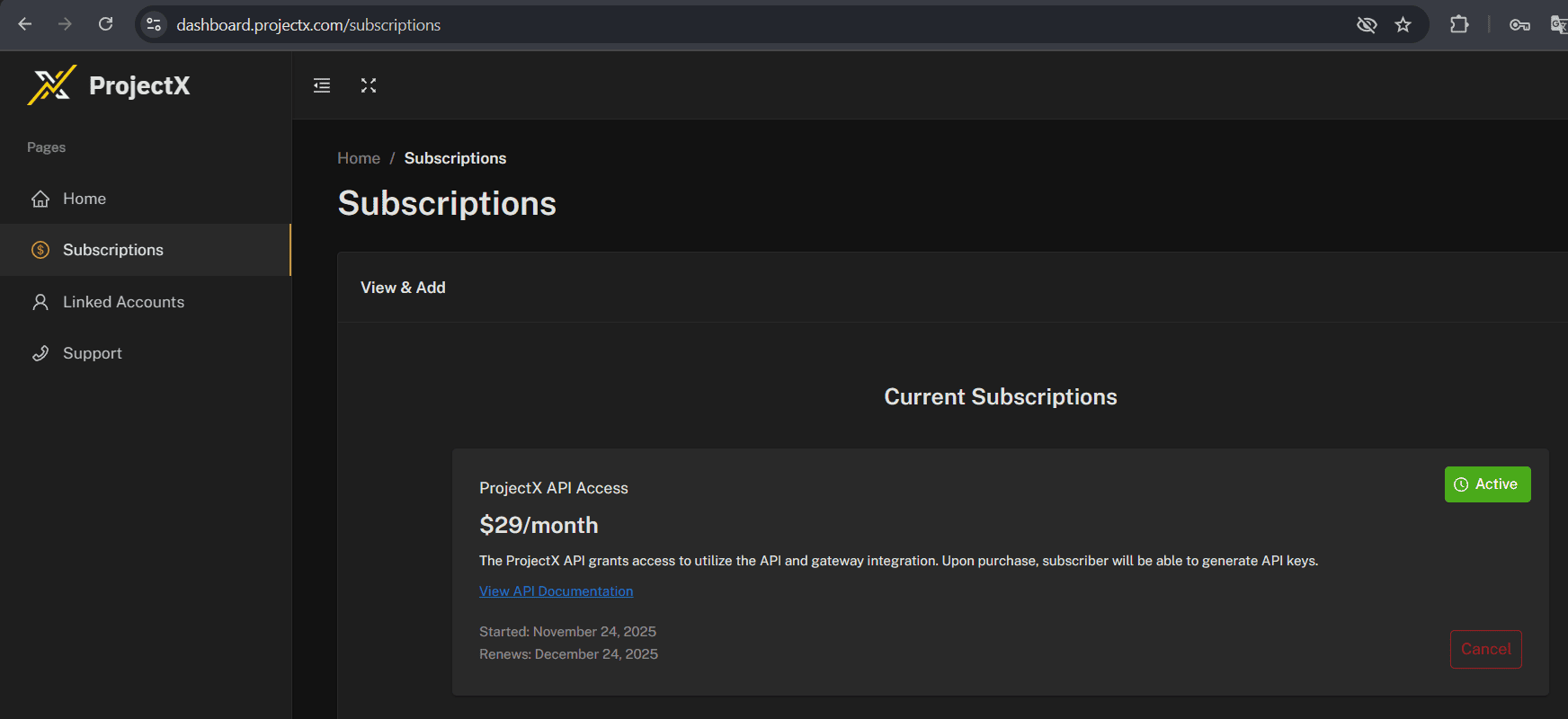

1) Enable ProjectX API Access

1. Log in to your ProjectX client area and open the Subscriptions page.
2. Purchase ProjectX API Access ($29/month).
3. Make sure the subscription status is Active before moving to the next step.

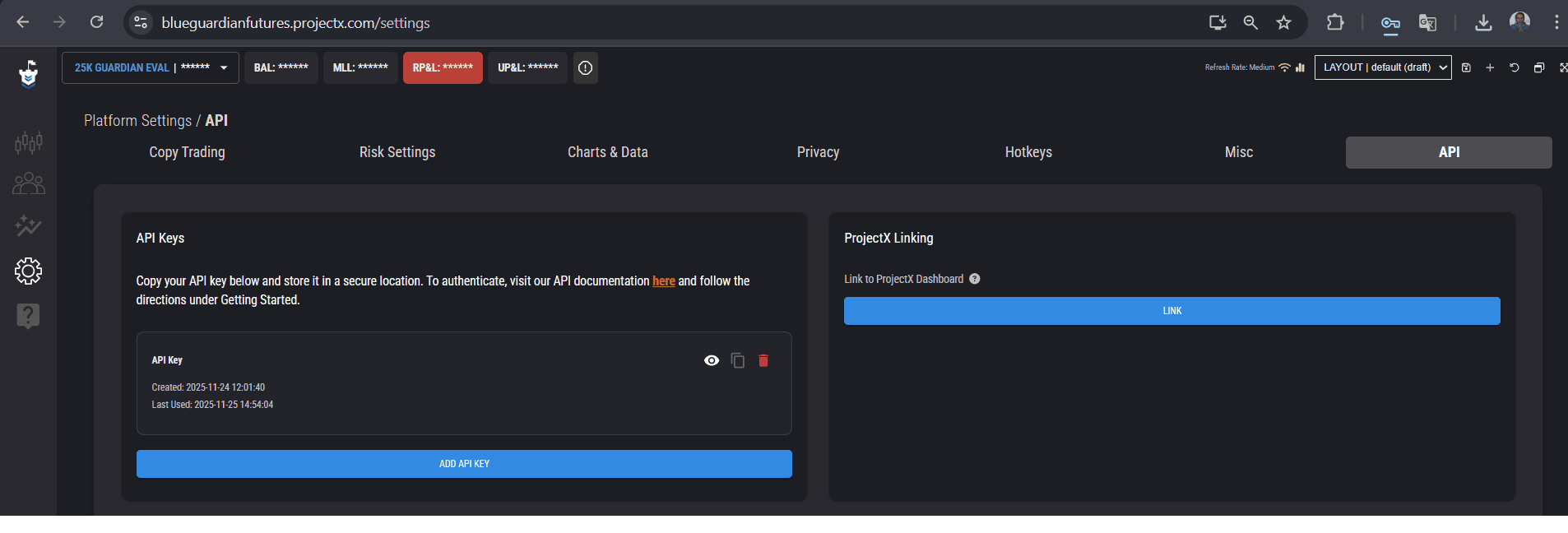

2) Create API Key in Your ProjectX Platform

1. Open your trading platform that is linked to ProjectX (your evaluation / dealer dashboard).
2. Go to Settings → API or a similar section for API keys.
3. Click Add API Key or Create API Key.
4. Copy the generated API Key and store it safely. You will paste it into AlgoWay.

3) Add ProjectX Webhook in AlgoWay

1. Log in to your AlgoWay account.
2. Go to Dashboard → Add Trial Webhook or Add Main Webhook.
3. Fill in the form:

• Source (from): TradingView
• Platform (to): ProjectX
• Quantity Multiplier: Absolute, or any mode you prefer
• Trade Type: Reverse / Hedge / One-way
• Account Type: Demo or Live
• Broker/Prop Firm: select your seller / evaluation from the list
• Username (Email): your ProjectX account email
• API Key: paste the API Key created in Step 2

4. Click Add Trial Webhook.

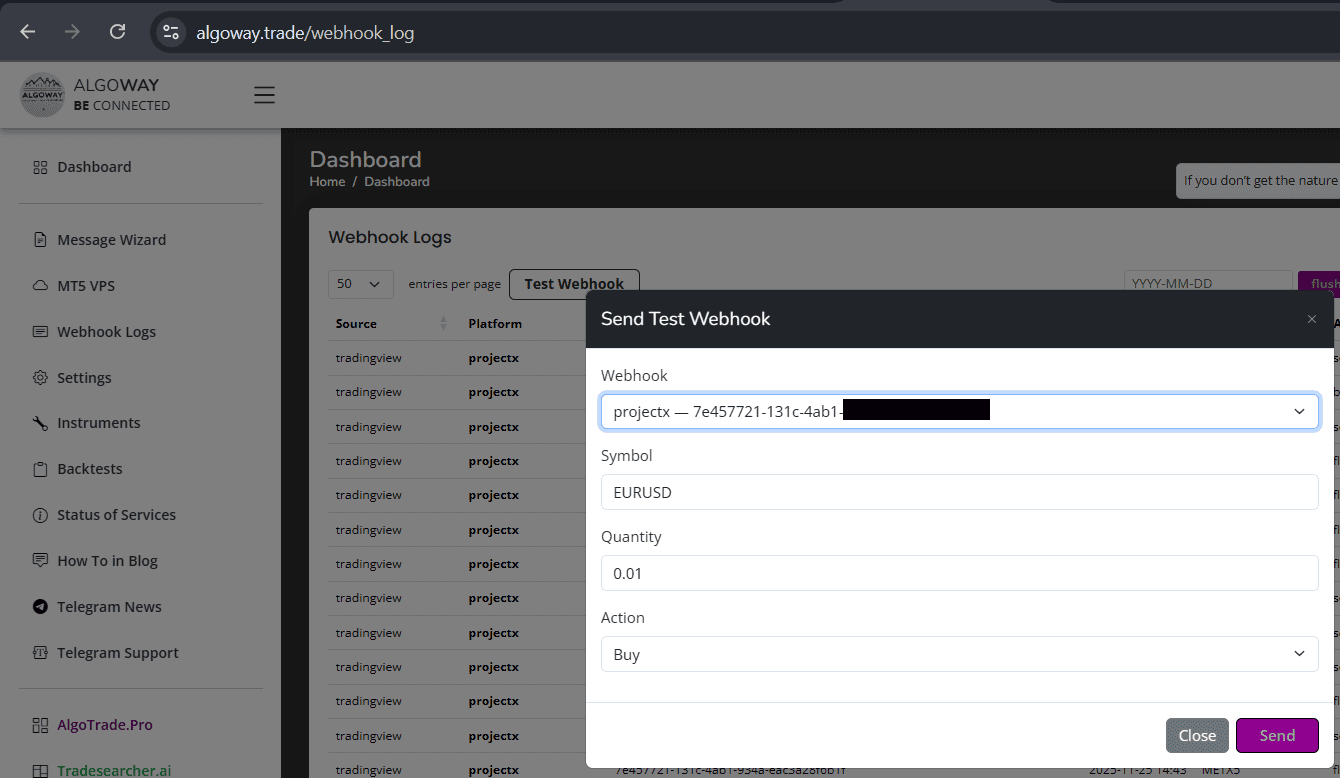

4) Optional: Send a Test Webhook from AlgoWay

1. Open Webhook Logs in AlgoWay and click Test Webhook.
2. Select your projectx webhook from the dropdown, set symbol, quantity, and action.
3. Click Send to confirm the connection to ProjectX is working.

5) Copy Your Webhook URL in AlgoWay

1. Go to Dashboard → Your Webhooks.
2. Find the row where Platform is projectx.
3. Click the Webhook UUID or the copy button. AlgoWay will copy the full webhook link to your clipboard.
4. This URL will be used as the Webhook URL in TradingView.

6) Use Correct JSON for the TradingView Alert

In the TradingView alert message, send this JSON:

{
  "platform_name": "projectx",
  "ticker": "{{ticker}}",
  "order_contracts": "{{strategy.order.contracts}}",
  "order_action": "{{strategy.market_position}}",
  "price": "{{close}}"
}

This structure matches the TradingView Alert Sample window in AlgoWay for ProjectX and must be copied exactly.

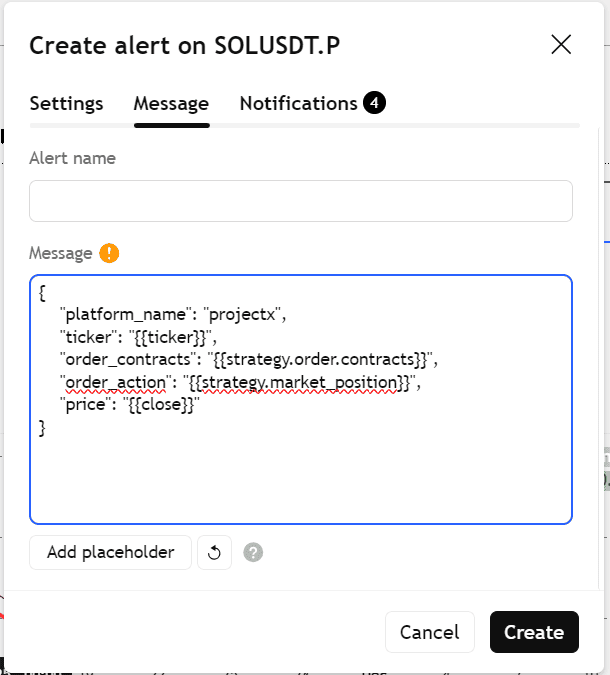

7) Create TradingView Alert – Message Tab

1. Open the chart and choose your symbol, for example SOLUSDT.P.
2. Create an alert from your strategy or directly from the chart.
3. On the Message tab, paste the JSON from Step 6 into the message field.
4. Do not change placeholders such as {{ticker}} or {{strategy.order.contracts}}. TradingView fills them automatically.

8) Create TradingView Alert – Webhook URL

1. Switch to the Notifications tab in the same alert.
2. Enable Webhook URL.
3. Paste the AlgoWay webhook URL copied in Step 5.
4. Optionally enable push notifications, onsite notifications, or sound.
5. Click Create to save the alert.

---

Need a PDF? Just print this page to PDF (Ctrl/Cmd+P).
