How to Connect TradingView Alerts to BingX with AlgoWay Webhook Automation

AlgoWay lets you connect TradingView alerts to BingX Perpetual Futures through webhook automation. You create a BingX API key, enable the required trading permissions, restrict the API key to the AlgoWay IP address, create a BingX webhook in AlgoWay, paste the AlgoWay webhook URL into TradingView, and send a valid JSON alert message.

This guide is written for traders searching for how to connect TradingView to BingX, TradingView to BingX webhook, BingX automated trading, BingX trading bot webhook, BingX Perpetual Futures automation, and crypto futures trading automation with TradingView alerts.

The execution route is:

TradingView alert → AlgoWay webhook → BingX API → BingX Perpetual Futures order

TradingView creates the signal. AlgoWay receives and validates the webhook JSON. BingX receives the final trading command through the API key and permissions configured in AlgoWay.

Last updated: 2026-05-12 • Author: AlgoWay

Quick Answer: TradingView to BingX with AlgoWay

To automate BingX from TradingView, you need:

1. a BingX account with Perpetual Futures enabled;
2. a BingX API key with Read and Perpetual Futures Trading permissions;
3. IP restriction set to the AlgoWay IP address shown in your dashboard;
4. an AlgoWay BingX webhook;
5. a TradingView alert with the AlgoWay webhook URL and valid JSON message.

After setup, one TradingView alert can become an automated BingX Perpetual Futures order through AlgoWay.

Why Automate BingX with TradingView Alerts?

TradingView is often used for strategy design, Pine Script, indicators, backtesting and alert logic. BingX is used for crypto spot and derivatives trading, especially Perpetual Futures. AlgoWay connects these two parts with a webhook pipeline.

This is useful when you want to:

• turn TradingView strategy alerts into BingX orders;
• automate BTCUSDT, ETHUSDT or other BingX Perpetual Futures workflows;
• use one AlgoWay dashboard for multiple exchanges and brokers;
• avoid maintaining your own webhook server and BingX API client;
• track received alerts, execution status and errors in logs;
• run a no-code TradingView to BingX trading bot workflow.

AlgoWay does not create a profitable strategy by itself. It automates the execution route after your TradingView strategy, indicator or manual alert sends the command.

Prerequisites

Prepare these items before creating the BingX webhook:

• BingX account with Perpetual Futures enabled;
• AlgoWay account with access to the Webhooks dashboard;
• TradingView alert source: strategy, indicator or manual condition;
• TradingView plan that supports webhook alerts;
• AlgoWay IP address from your dashboard;
• clear decision about demo/testing vs live trading size;
• valid AlgoWay JSON message for the selected BingX route.

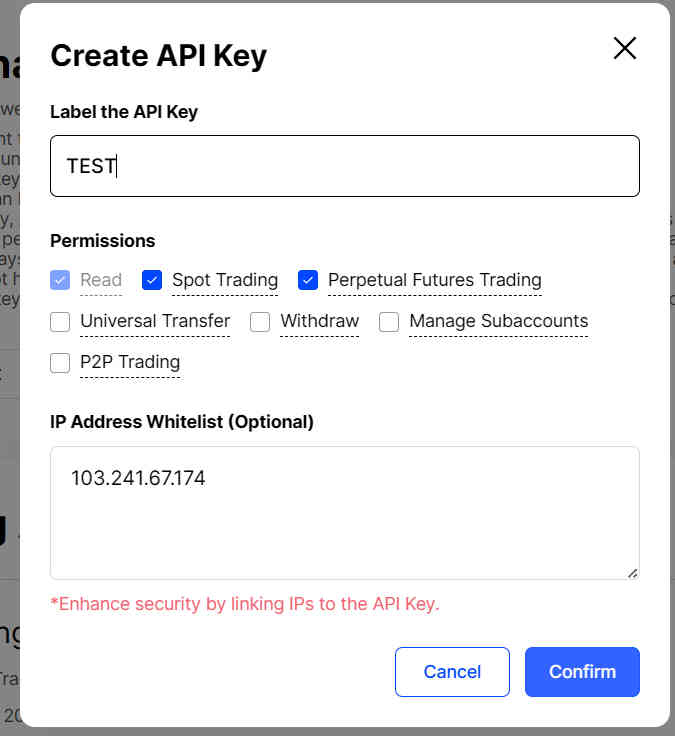

Step 1. Create a BingX API Key

Open API Management in BingX and create a dedicated API key for AlgoWay. Use a clear label such as ALGOWAY or ALGOWAY-BINGX so you can identify this integration later.

1. Log in to BingX.
2. Open API Management.
3. Click Create API Key.
4. Set a label, for example ALGOWAY.
5. Enable the required permissions.
6. Add the AlgoWay IP address to the IP whitelist.
7. Complete BingX security verification.

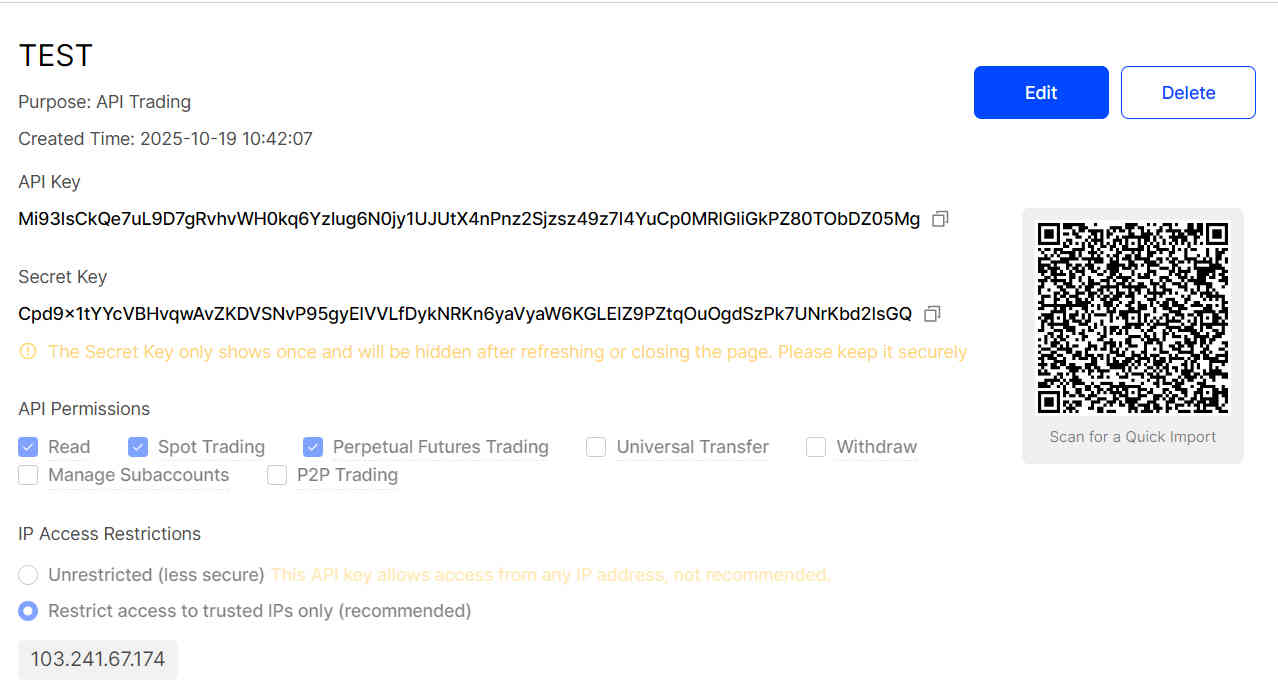

8. Copy the API Key and Secret Key.

Recommended API Permissions

Permission	Use it?	Reason
Read	Yes	Required for account, balance, symbol and order status checks.
Perpetual Futures Trading	Yes for futures automation	Required to place or manage BingX Perpetual Futures orders.
Spot Trading	Only if needed	Enable only if your AlgoWay route uses BingX Spot trading.
Withdraw	No	Not required for AlgoWay webhook trading automation.

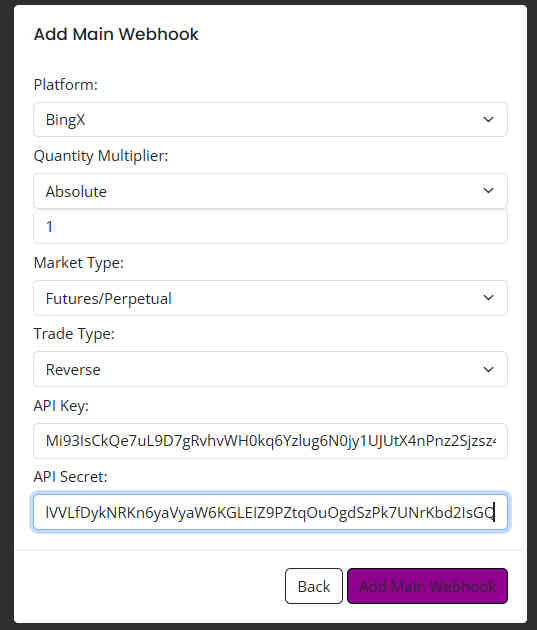

Step 2. Create a BingX Webhook in AlgoWay

After the BingX API key is ready, create a BingX webhook in AlgoWay. This webhook will receive TradingView alerts and route them to BingX.

1. Open the AlgoWay Dashboard.
2. Click Add Main Webhook or create a trial webhook.
3. Select TradingView as the source.
4. Select BingX as the platform.
5. Choose the required market type, usually Futures / Perpetual.
6. Choose the required trade type, such as Reverse, if that is the strategy behavior you want.
7. Paste the BingX API Key and API Secret.
8. Save the webhook.

After saving the webhook, AlgoWay gives you a unique webhook URL. This URL is what TradingView will call when the alert is triggered.

https://algoway.co/your-webhook-uuid

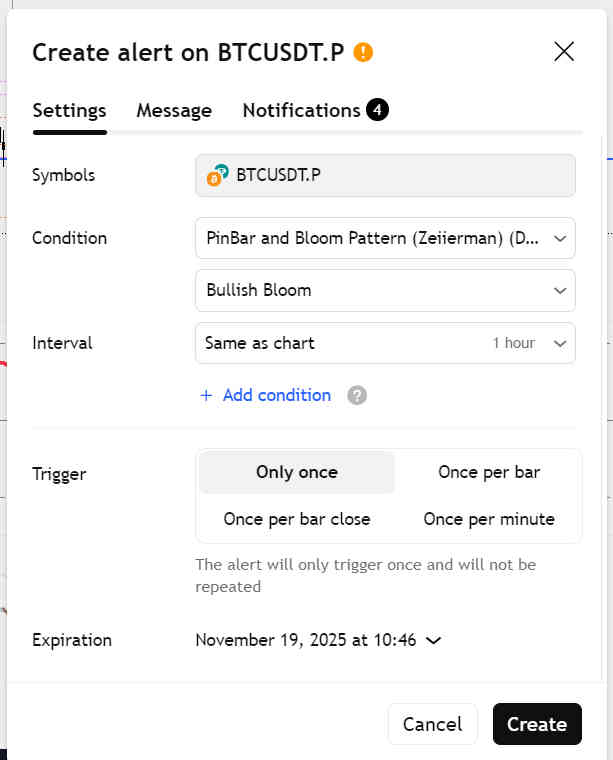

Step 3. Create a TradingView Alert for BingX

Open the TradingView chart for the instrument you want to automate. For BingX Perpetual Futures, make sure the TradingView symbol and BingX symbol are compatible or correctly mapped.

1. Open your TradingView chart.
2. Select the symbol and timeframe.
3. Open Create Alert.
4. Select your strategy, indicator or price condition.
5. Choose the alert frequency.
6. Paste the JSON message into the alert message box.
7. Open Notifications.
8. Enable Webhook URL.
9. Paste the AlgoWay webhook URL.
10. Save the alert.

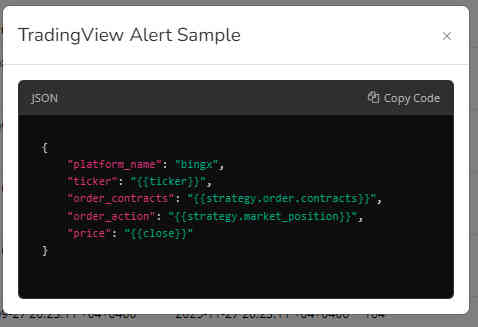

Step 4. TradingView Webhook JSON for BingX

TradingView must send valid JSON. AlgoWay expects structured fields, not plain text.

Basic TradingView strategy alert JSON for BingX:

{
  "platform_name": "bingx",
  "ticker": "{{ticker}}",
  "order_contracts": "{{strategy.order.contracts}}",
  "order_action": "{{strategy.market_position}}",
  "price": "{{close}}"
}

TradingView replaces placeholders when the alert fires:

• {{ticker}} — chart ticker;
• {{strategy.order.contracts}} — strategy order size;
• {{strategy.market_position}} — strategy position state;
• {{close}} — close price at alert time.

Fixed Test JSON

For a controlled test, use a fixed symbol and small valid size:

{
  "platform_name": "bingx",
  "ticker": "BTCUSDT.P",
  "order_contracts": 0.001,
  "order_action": "buy"
}

Use the minimum valid quantity for the selected BingX market. If the order is rejected, check symbol format, quantity, margin, leverage and API permissions.

Ticker Mapping for BingX Perpetual Futures

TradingView symbols and BingX symbols may not always match perfectly. For example, TradingView may use a perpetual futures symbol format such as BTCUSDT.P, while an exchange API may expect a different internal symbol format.

Before live trading, check:

• the exact symbol on the TradingView chart;
• the exact symbol accepted by BingX;
• the market type: Spot or Perpetual Futures;
• whether the contract is active and tradable;
• whether the AlgoWay route expects ticker from TradingView or a mapped value.

Step 5. Test the BingX Webhook and Check Logs

Before using a live TradingView strategy, test the webhook with minimal size.

1. Create a small test alert or use AlgoWay's test webhook function.
2. Open Webhook Logs in AlgoWay.
3. Confirm the incoming JSON payload.
4. Confirm the outgoing order status.
5. Open BingX Orders or Positions.
6. Confirm that the action, symbol and size match your intended trade.

If the order does not appear, do not immediately change your strategy. First inspect the exact error in AlgoWay logs and BingX order response.

Trade Type: Reverse, Hedge and Opposite Logic

Trade Type controls how AlgoWay handles direction and open position behavior. This is important for futures automation because the same incoming signal can be interpreted differently depending on your strategy design.

• Reverse: commonly used when the strategy should manage one net direction according to the latest signal logic.
• Hedge: used when long and short positions can exist separately, if the platform and account support it.
• Opposite: used when an opposite signal should close the current position and open the other side.

For a full explanation, read: How AlgoWay handles opposite trading signals.

Common BingX Webhook Problems

API Permission Missing

If Perpetual Futures Trading permission is not enabled, BingX can reject futures orders. Check API Management and update permissions if required.

IP Whitelist Is Wrong

If the API key is restricted to the wrong IP address, AlgoWay cannot use the key. Make sure the BingX API whitelist contains the exact AlgoWay IP shown in your dashboard.

Withdraw Permission Enabled

Withdraw permission is not required for AlgoWay. If it is enabled, create a safer API key with trading-only permissions.

Wrong Market Type

A Spot symbol and a Perpetual Futures symbol are not the same market. Match the AlgoWay webhook market type with the BingX market you want to automate.

Invalid JSON

TradingView must send valid JSON. Use double quotes, correct commas and supported field names. If the payload is plain text, the automation can fail before reaching BingX.

Wrong Symbol Format

Check whether the TradingView ticker matches the BingX Perpetual Futures symbol expected by the route.

Invalid Quantity

The order size must meet BingX minimum quantity and contract rules. Test with minimal valid size before using strategy size.

Alert Fires Too Often

For bar-close strategies, use Once per bar close unless your logic intentionally needs intra-bar signals.

Why Use AlgoWay Instead of Building a TradingView to BingX Bot?

You can build your own BingX automation system. That requires a public webhook server, JSON validation, API authentication, BingX order endpoint integration, position logic, error handling, logging, monitoring and ongoing maintenance.

AlgoWay gives traders a ready automation layer:

• TradingView webhook receiver;
• structured JSON workflow;
• BingX API credential routing;
• dashboard-based webhook setup;
• logs for payloads and execution responses;
• support for multiple platforms beyond BingX;
• trade modes and risk-aware execution logic.

This makes AlgoWay a no-code TradingView to BingX webhook connector for traders who want crypto futures automation without maintaining their own trading bot server.

Related AlgoWay Guides

• How to automate TradingView alerts to any broker with AlgoWay
• How to create a webhook in TradingView
• AlgoWay JSON schema guide
• How to fix AlgoWay webhook Error 415
• How to connect TradingView to Binance with AlgoWay
• How to connect TradingView to Bybit with AlgoWay
• How to connect TradingView to Gate.io with AlgoWay
• How to copy TradingView alerts to multiple accounts

Final Summary

To automate BingX with TradingView, create a restricted BingX API key, enable the required futures trading permission, create a BingX webhook in AlgoWay, add the AlgoWay webhook URL to TradingView, and send a valid JSON alert message.

AlgoWay turns TradingView alerts into BingX Perpetual Futures webhook automation without forcing you to build and maintain your own crypto trading bot infrastructure.
